K&N's Universal Air Filters are designed and manufactured for a wide variety of applications. This universal air filter has a rigid flange for a clamp-on hose connection. K&N universal air filters are washable and reusable.
K&N's Universal Air Filters are designed and manufactured for a wide variety of applications including racing vehicles, radio-controlled cars, generators, snowmobiles, tractors, and other applications. Regardless of the angle or offset diameter of the air intake, there is probably a K&N Universal air filter for your equipment. This universal air filter has a rigid flange for a clamp-on hose connection. K&N universal air filters are washable and reusable.
- Designed to increase horsepower and acceleration
- Washable and reusable lifetime air filter
- Rigid flange for connection to a hose
- Made in USA
- One year limited warranty
Application Summary:
| Year |
Make/Model |
| 2003-2005 |
Ford Excursion |
| 2003-2007 |
Ford F-250 Super Duty |
| 2003-2007 |
Ford F-350 Super Duty |
| Attributes |
| Air Filter Material |
Cotton Gauze |
| Air Filter Outlet Shape |
Oval |
| Air Filter Shape |
Oval Straight |
| Alternate Part Number |
RC-5178 |
| ASIN |
B002EIE37W |
| Automotive Item Grade |
High Performance |

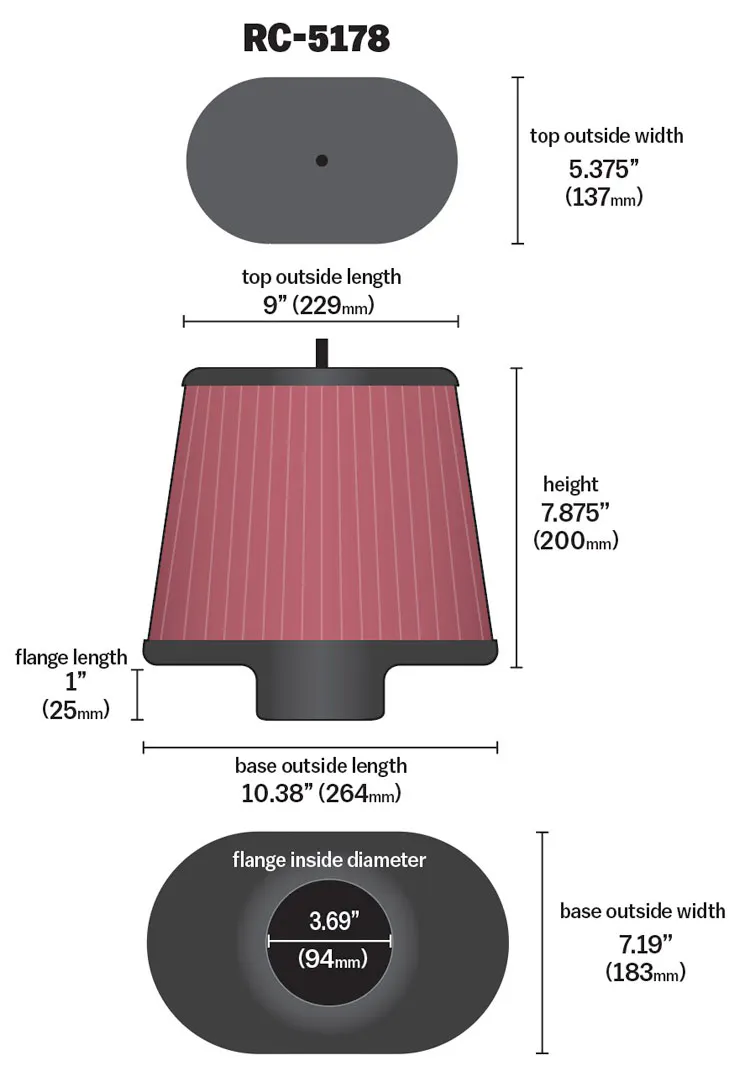

| Base Outside Length |
10.25 in (260 mm) |
| Base Outside Width |
7.188 in (183 mm) |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Carb/Air Horn Dia. (in.) |
4.438 |
| CARB/Air Horn Diameter |
4.438 in. |
| CARB/Air Horn Diameter (in.) |
4.438 in. |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Filter Material |
Cotton Gauze |
| Filter Re-Oiling Amount |
7.57 oz (224 ml) |
| Flange Angle |
0 degrees, 0 Degree |
| Flange Inside Diameter |
3.688 in (94 mm) |
| Flange Length |
1 in (25 mm) |
| Flange Offset |
1.5 in (38 mm), 1.500 in. (38mm) |
| Flange Outside Diameter |
4 in (102 mm) |
| Flange Type |
Offset |
| Flanges |
1 |
| Frame Design |
Flexible |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Height |
7.875 in (200 mm) |
| Height (in.) |
7.875 in. (200mm) |
| Item Height |
7.875 in. (200mm) |
| Item Type |
High Performance |
| Item Weight |
4.200 lbs. (1.9 kg) |
| Life Cycle Status Code |
Available to Order |
| Machine Washable |
Yes |
| Material |
Rubber Base |
| NAFTA Preference Criterion Code |
B |
| Number of Flanges |
1 |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Outside Length |
10.25 in (260 mm) |
| Overall Filter Efficiency |
Up To 99% Efficiency |
| Package Content |
1 |
| Package Contents |
1 Air Filter |
| Package Material |
Paperboard |
| Package Quantity |
1 |
| Package Type |
Box |
| Pre-Screened |
No |
| Product Box Height |
7.75 in (197 mm), 7.750 in. (197mm) |
| Product Box Length |
10.38 in (264 mm), 10.380 in. (264mm) |
| Product Box Width |
10.38 in (264 mm), 10.380 in. (264mm) |
| Product Style |
Unique Air Filters |
| SDR Required Flag |
N |
| Shape |
Oval Straight |
| Standard Pack |
4 |
| Top Material |
Black Powder Coated |
| Top Material/Finish |
Black Powder Coated |
| Top Outside Length |
9 in (229 mm) |
| Top Outside Width |
5.375 in (137 mm) |
| Top Style |
Metal |
| Warranty |
1 Year Limited |
| Warranty Time |
3 |
| Washable |
Yes |
| Weight |
4.2 lb (1.9 kg) |
| GTIN |
10024844246001 |
