K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow. This power gaining air intake comes with K&N's No-Hassle Lifetime Limited warranty.
The K&N AirCharger 63-3096 air intake system replaces the restrictive factory air filter and air intake housing in some Cadillac CTS-V models. This system allows the engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The K&N air filter is made from multi-layers of oiled cotton gauze which improves air flow and can be used up to 100,000 miles before cleaning is necessary (depending on driving conditions). The intake tube is made from carbon fiber to improve the look in the engine bay and to be lighter in weight than the factory system. It is also designed to accomodate the factory MAF sensor and crank case vent fitting. A heat shield is designed to keep out hot engine bay air, and also uses the existing factory mounts for installation.
- Designed to improve throttle response and engine sound
- Carbon fiber intake tube
- Replaces entire factory air intake system
- K&N No-Hassle Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2016-2019 |
Cadillac CTS |
| Attributes |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Material |
Cotton Gauze |
| Air Filter Outlet Shape |
Round |
| Air Filter Washable |
Yes |
| Alternate Part Number |
63-3096 |
| ASIN |
B074JDYPR9 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| California Restricted |
Not legal for sale or use in California |
| Clamp Color |
Black |
| Clamp Color/Finish |
Black |
| Clamp Material |
Steel |
| Clamp Quantity |
5 |
| Clamp Style |
Worm Gear |
| Clamps Included |
5 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Black |
| Coupler Color/Finish |
Black |
| Couplers Included |
2 |
| Emission Code |
Not in CA |
| Estimated Horse Power Gain |

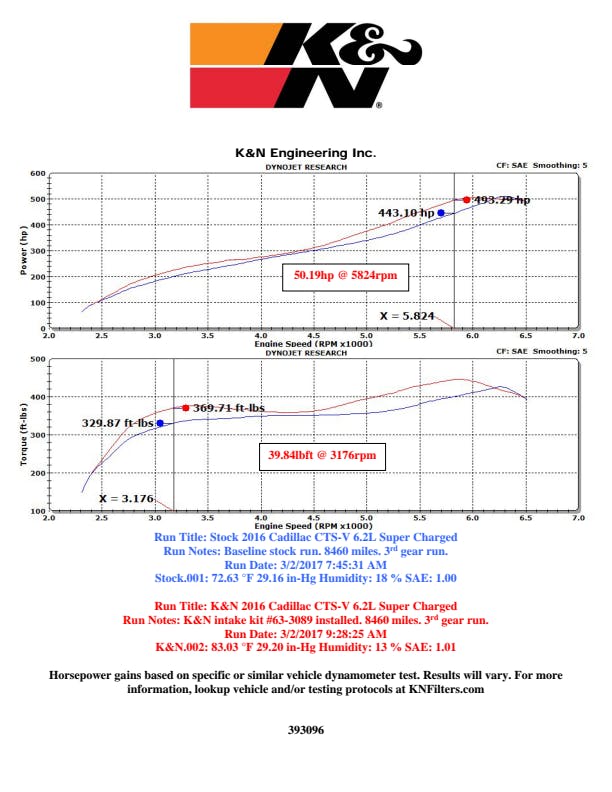

50.19 HP @ 5824 RPM |
| Estimated Horsepower Gain |
50.19 HP @ 5824 RPM |
| Estimated Torque Gain |
40 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
50 HP |
| Intake Pipe Color |
Black |
| Intake Pipe Color / Finish |
Black |
| Intake Pipe Material |
High-Density Cross-Linked Polyethylene |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
9.200 lbs. (4.2 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
No |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Package Material |
Corrugated |
| Package Type |
Box |
| Product Box Height |
12.5 in (318 mm), 12.500 in. (318mm) |
| Product Box Length |
22.25 in (565 mm), 22.250 in. (565mm) |
| Product Box Width |
14.25 in (362 mm), 14.250 in. (362 mm) |
| Product Style |
63 Series Aircharger Kits |
| Replacement Filter |
RP-2960 |
| RPM |
5824 |
| SDR Required Flag |
N |
| Street Legal |
No |
| Street Legal In All US States |
No, Not legal for sale or use in California on any pollution controlled motor vehicle. |
| TUV Approved (Europe) |
No, No |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
9.2 lb (4.2 kg) |
| GTIN |
00024844365309 |
