K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow.
The K&N AirCharger 63-3060-1 air intake system replaces your Chevrolet Corvette Z06's restrictive factory air filter and air intake housing. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your Corvette Z06 engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-3060-1 air intake has a K&N high-flow air filter with a top and base made from light weight carbon fiber. The oversized air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install requiring only a screwdriver and several wrenches.
- Designed to improve throttle response and engine sound
- Free-flowing carbon fiber intake tube
- Replaces entire factory air intake system
- Easy to install, usually in 90 minutes or less
- Lasts up to 100,000 miles before service is required (depending on driving conditions)
Application Summary:
| Year |
Make/Model |
| 2006-2009 |
Chevrolet Corvette |
| Attributes |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
4.813 in. (122mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Oulet Length |
8.750 in. (222mm) |
| Air Filter Oulet Width |
8.750 in. (222mm) |
| Air Filter Outlet Length |
8.750 in. (222mm) |
| Air Filter Outlet Shape |
Oval |
| Air Filter Outlet Width |
8.750 in. (222mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
63-3060-1 |
| ASIN |
B001CIEMW6 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| California Restricted |
Not legal for sale or use in California |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
4 |
| Clamp Style |
Regular |
| Clamps Included |
4 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Black |
| Coupler Color/Finish |
Black |
| Couplers Included |
2 |
| Emission Code |
Not in CA |

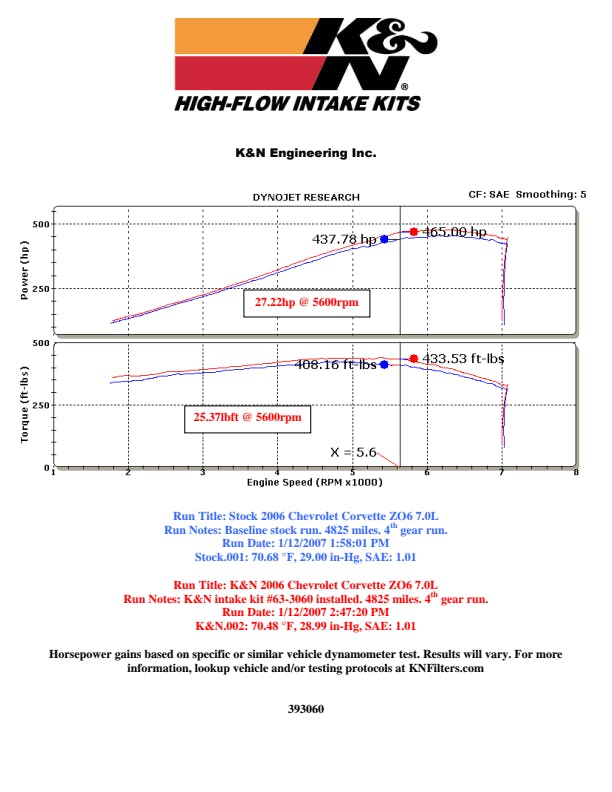

| Estimated Horse Power Gain |
27.22 HP @ 5600 RPM |
| Estimated Horsepower Gain |
27.22 HP @ 5600 RPM |
| Estimated Torque Gain |
25 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
27 HP |
| Intake Pipe Color |
Black |
| Intake Pipe Color / Finish |
Black |
| Intake Pipe Material |
High-Density Cross-Linked Polyethylene |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
8.800 lbs. (4 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
No |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Oversize Shipping |
OS1 |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
15.6 in (396 mm), 15.600 in. (396mm) |
| Product Box Length |
24.2 in (615 mm), 24.200 in. (615mm) |
| Product Box Width |
20.2 in (513 mm), 20.200 in. (513mm) |
| Product Style |
63 Series Aircharger Kits |
| Replacement Filter |
RP-5161 |
| RPM |
5600 |
| SDR Required Flag |
N |
| Street Legal |
No |
| Street Legal In All US States |
No, Not legal for sale or use in California on any pollution controlled motor vehicle. |
| TUV Approved (Europe) |
No, No |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
8.8 lb (4 kg) |
| GTIN |
00024844233820 |
