K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow.
The K&N AirCharger 63-1050 air intake system replaces the restrictive factory air filter and air intake housing in some Chevrolet Corvette Z06 models. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your Corvette Z06's engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-1050 air intake comes with a vented, carbon fiber topped K&N high-flow air filter that directs air into the custom molded intake for a guaranteed power gain. The oversized air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions.
- Designed to improve throttle response and engine sound
- Free-flowing high density polyethylene tube
- Replaces entire factory air intake system
- Not legal for highway use in states adopting California emission regulations
- Lasts up to 100,000 miles before service is required (depending on driving conditions)

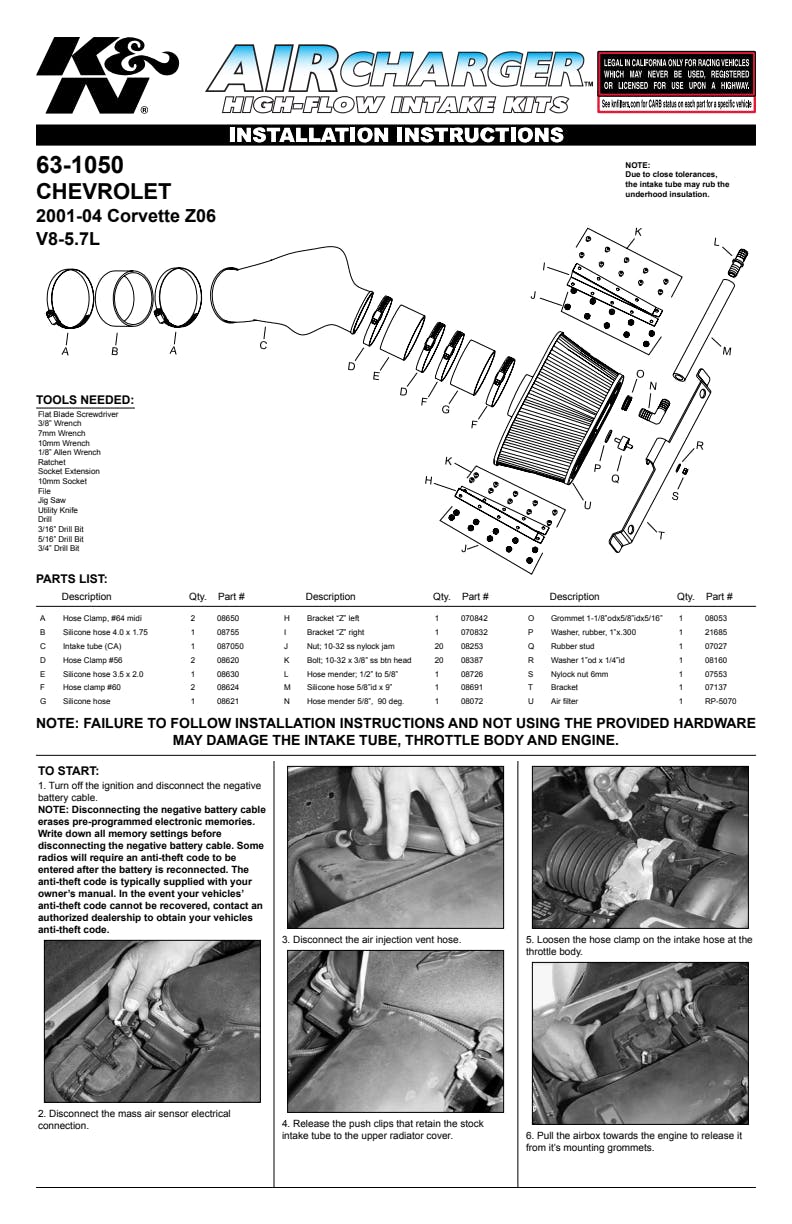

- Easy to install, usually in 90 minutes or less
Application Summary:
| Year |
Make/Model |
| 2001-2004 |
Chevrolet Corvette |
| Attributes |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
6.000 in. (152mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Oulet Length |
3.875 in. (98mm) |
| Air Filter Oulet Width |
3.875 in. (98mm) |
| Air Filter Outlet Length |
3.875 in. (98mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
3.875 in. (98mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
63-1050 |
| ASIN |
B000BR1QAU |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| California Restricted |
Not legal for sale or use in California |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
6 |
| Clamp Style |
Regular |
| Clamps Included |
6 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Black |
| Coupler Color/Finish |
Black |
| Couplers Included |
4 |
| Emission Code |
Not in CA |

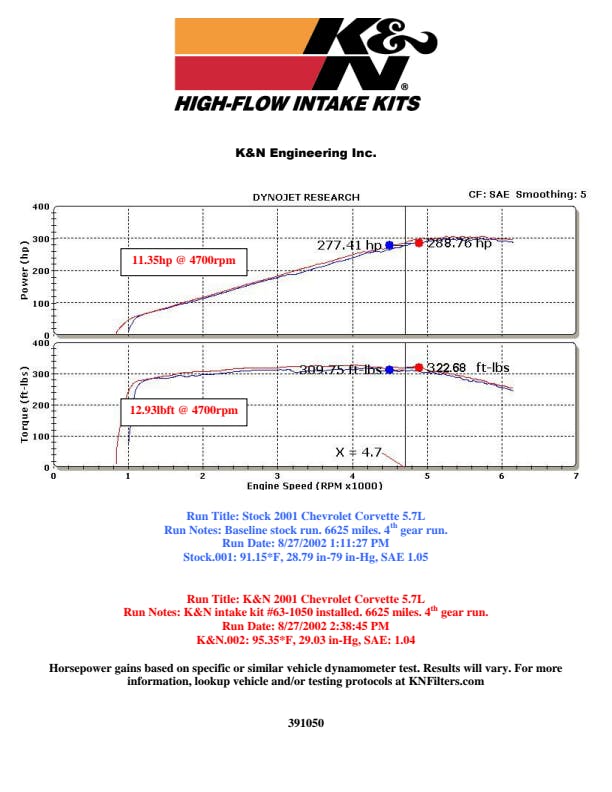

| Estimated Horse Power Gain |
11.35 HP @ 4700 RPM |
| Estimated Horsepower Gain |
11.35 HP @ 4700 RPM |
| Estimated Torque Gain |
13 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
11 HP |
| Intake Pipe Color |
Black |
| Intake Pipe Color / Finish |
Black |
| Intake Pipe Material |
High-Density Cross-Linked Polyethylene |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
8.500 lbs. (3.9 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
No |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
12.5 in (318 mm), 12.500 in. (318mm) |
| Product Box Length |
18.25 in (464 mm), 18.250 in. (464mm) |
| Product Box Width |
18.25 in (464 mm), 18.250 in. (464 mm) |
| Product Style |
63 Series Aircharger Kits |
| Replacement Filter |
RP-5070 |
| RPM |
4700 |
| SDR Required Flag |
N |
| Street Legal |
No |
| Street Legal In All US States |
No, Not legal for sale or use in California on any pollution controlled motor vehicle. |
| TUV Approved (Europe) |
No, No |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
8.5 lb (3.9 kg) |
| GTIN |
00024844097989 |
