K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow.
The K&N AirCharger 63-1014 air intake system replaces your vehicle's restrictive factory air filter and air intake housing. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your vehicle's engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-1014 air intake comes with a chrome topped K&N high-flow air filter that clamps onto the air intake hoses giving you a guaranteed power gain. The oversized air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install using commonly available tools.
- Designed to improve throttle response and engine sound

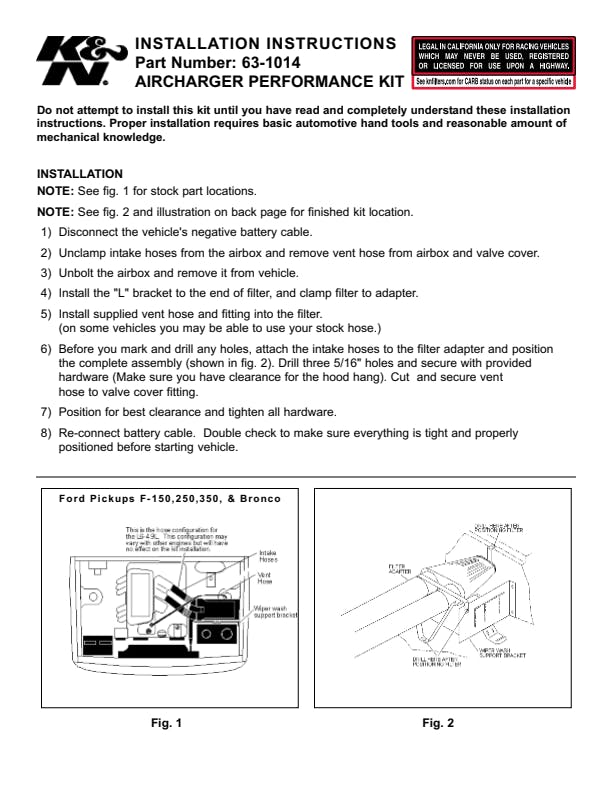

- Easy to install, usually in 60 minutes or less
- Replaces entire factory air intake system
- Not legal for highway use in states adopting California emission regulations
- Lasts up to 100,000 miles before service is required (depending on driving conditions)
Application Summary:
| Year |
Make/Model |
| 1996 |
Ford Bronco |
| 1996 |
Ford F-150 |
| 1996 |
Ford F-250 |
| 1997 |
Ford F-250 HD |
| 1996-1997 |
Ford F-350 |
| Attributes |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
9.000 in. (229mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Oulet Length |
0.625 in. (16mm) |
| Air Filter Oulet Width |
3.125 in. (79mm) |
| Air Filter Outlet Length |
0.625 in. (16mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
3.125 in. (79mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
63-1014 |
| ASIN |
B000BR51M4 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| California Restricted |
Not legal for sale or use in California |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
5 |
| Clamp Style |
Mini |
| Clamps Included |
5 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Not Applicable |
| Coupler Color/Finish |
Not Applicable |
| Couplers Included |
None, No |
| Emission Code |
Not in CA |

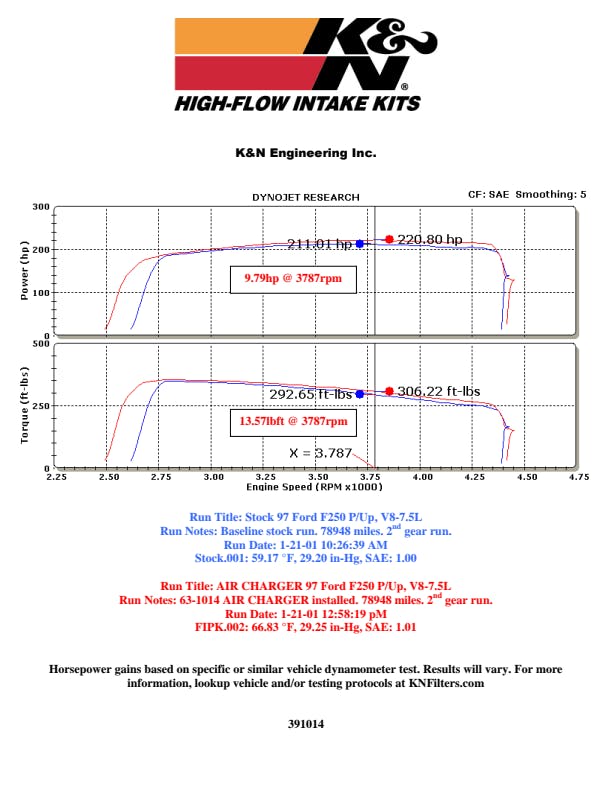

| Estimated Horse Power Gain |
9.45 HP @ 3787 RPM |
| Estimated Horsepower Gain |
9.79 HP @ 3787 RPM |
| Estimated Torque Gain |
14 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
9 HP |
| Item Weight |
6.100 lbs. (2.8 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
No |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
12.25 in (311 mm), 12.250 in. (311mm) |
| Product Box Length |
20.25 in (514 mm), 20.250 in. (514mm) |
| Product Box Width |
12.25 in (311 mm), 12.250 in. (311mm) |
| Product Style |
63 Series Aircharger Kits |
| Replacement Filter |
RF-1012 |
| RPM |
3787 |
| SDR Required Flag |
N |
| Street Legal |
No |
| Street Legal In All US States |
No, Not legal for sale or use in California on any pollution controlled motor vehicle. |
| Top Material |
Stainless Steel |
| Top Material/Finish |
Stainless Steel |
| Top Style |
Metal |
| TUV Approved (Europe) |
No, No |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
6.1 lb (2.8 kg) |
| GTIN |
00024844034519 |
