K&N's easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow.
The K&N 57-9027 FIPK air intake system replaces the restrictive factory air filter and air intake tubing in some Toyota Tundra and Sequoia models. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 57-9027 air intake comes with a custom molded K&N high-flow air filter that installs into the factory air box. Air is directed through an aerodynamically engineered intake tube into the engine's throttle body for a guaranteed power gain. The tube accommodates the factory mass air sensor, fuel pressure regulator vent line and crank case vent hose. The oversized custom-shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake installs in about 90 minutes or less and requires just commonly available tools.
- Designed to improve throttle response and engine sound
- Lasts up to 100,000 miles before service is required (depending on driving conditions)
- Replaces factory air filter and intake tube retaining factory air box
- Free-flowing high density polyethylene tube
- Easy to install, usually in 90 minutes or less
- Washable and reusable lifetime air filter
Application Summary:
| Year |
Make/Model |
| 2005-2006 |
Toyota Sequoia |
| 2005-2006 |
Toyota Tundra |
| Attributes |
| Air Box Included |
Yes |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
4.750 in. (121mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Oulet Width |
9.250 in. (235mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
9.250 in. (235mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
57-9027 |
| ASIN |
B001DF9PRU |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB EO Number |
D-269-34 |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
4 |
| Clamp Style |
Regular |
| Clamps Included |
4 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Black |
| Coupler Color/Finish |
Black |
| Couplers Included |
2 |
| Emission Code |
Legal US |

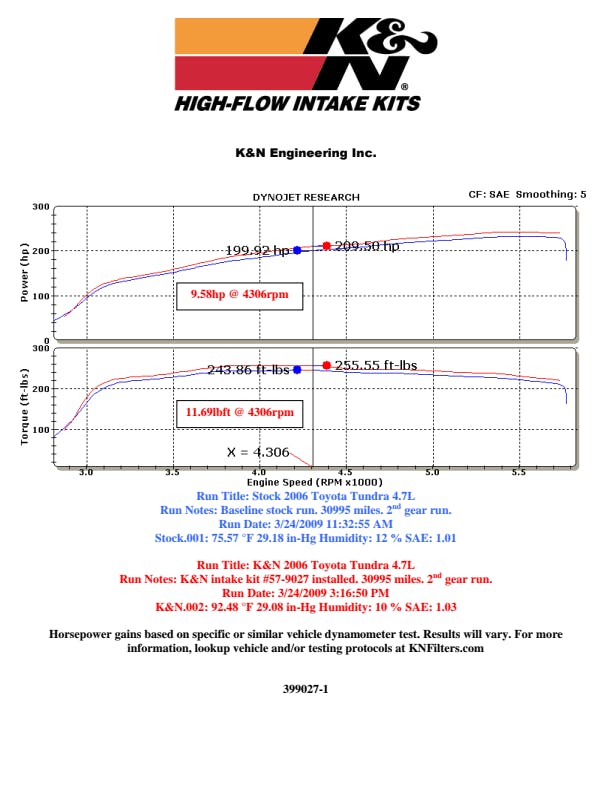

| Estimated Horse Power Gain |
9.58 HP @ 4306 RPM |
| Estimated Horsepower Gain |
9.58 HP @ 4306 RPM |
| Estimated Torque Gain |
12 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
10 HP |
| Intake Pipe Color |
Black |
| Intake Pipe Color / Finish |
Black |
| Intake Pipe Material |
High-Density Cross-Linked Polyethylene |
| Intake Pipe Outlet Length |
3.500 in. (89mm) |
| Intake Pipe Outlet Shape |
Round |
| Intake Pipe Outlet Width |
3.500 in. (89mm) |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
8.600 lbs. (3.9 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
Yes |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
12.5 in (318 mm), 12.500 in. (318mm) |
| Product Box Length |
18.25 in (464 mm), 18.250 in. (464mm) |
| Product Box Width |
18.25 in (464 mm), 18.250 in. (464 mm) |
| Product Style |
57 Series FIPK |
| Replacement Filter |
E-3034 |
| RPM |
4306 |
| SDR Required Flag |
N |
| Street Legal |
Yes |
| Street Legal In All US States |
Yes, Legal for use in all 50 states. |
| TUV Approved (Europe) |
No, No |
| Type |
Gen II |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
8.6 lb (3.9 kg) |
| GTIN |
00024844232472 |
