K&N's enclosed air box roto-molded cold air intake systems are guaranteed to provide an increase in horsepower and torque, and are protected by the K&N No-Hassle Lifetime Limited Warranty.
An enclosed air box design helps protect the filter and inlet air from the heat of the engine bay, and the air box lid allows for quick and easy access to the filter without tools. A high-density polyethylene (HDPE) rotationally-molded tube helps increase the volume of airflow to your engine, and provides a guaranteed increase in horsepower and torque. These systems are paired with a washable, reusable High-Flow Air Filter featuring oiled cotton filter media. The oversized, conical design of the filter allows you to go up to 100,000 miles between filter services under normal highway driving conditions. The system can typically be installed in less than 60 minutes.
  • Enclosed air box helps protect the filter from heat in the engine bay
  • Roto-molded HDPE intake tube paired with oversized oiled cotton air filter
  • Engineered to provide high airflow and exceptional filtration
  • Filter only requires cleaning every 100,000 miles under normal highway driving conditions

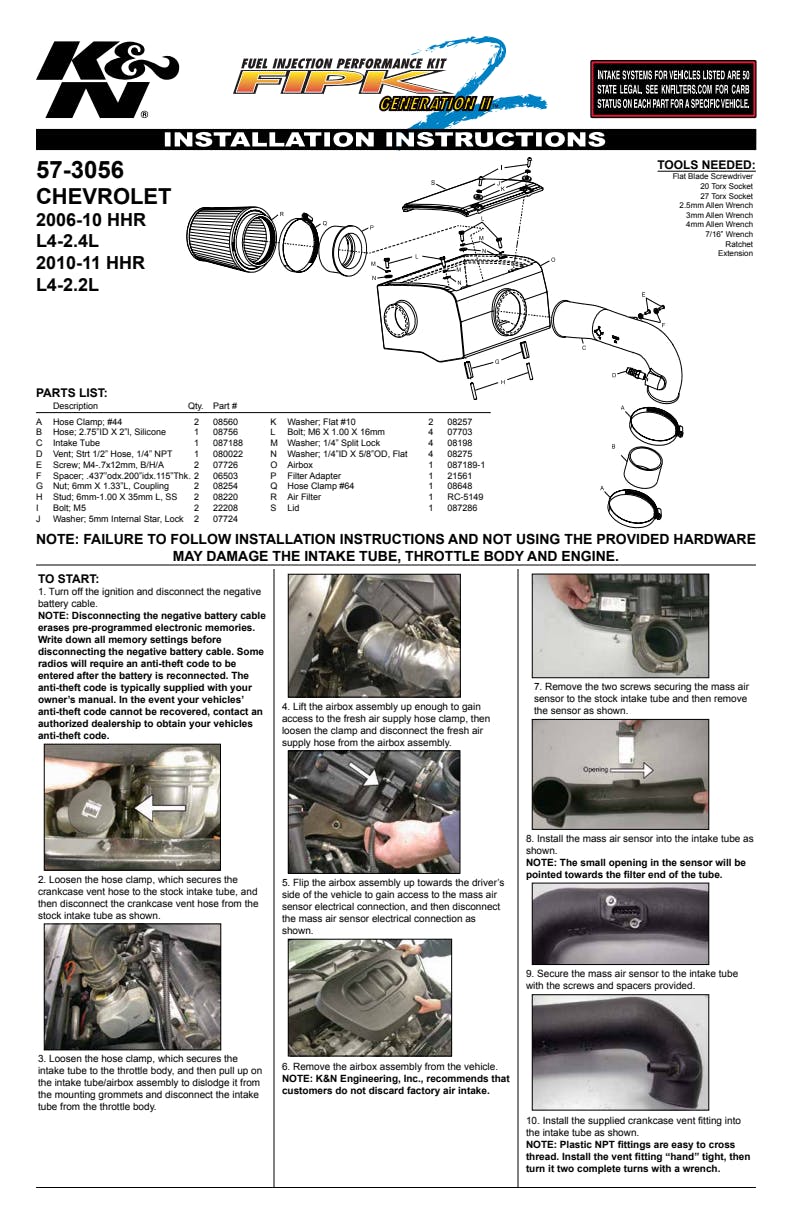

  • Typical installation can be completed in 60 minutes or less with simple hand tools
  • No-Hassle Lifetime Limited Warranty™
  • Will not void vehicle warranty

Application Summary:

Year Make/Model
2006-2011 Chevrolet HHR
Attributes
Air Box Included Yes
Air Filter Color Red
Air Filter Element Washable Yes
Air Filter Height 6.500 in. (165mm)
Air Filter Large End Diameter 5.375 in. (137mm)
Air Filter Material Cotton Gauze
Air Filter Oulet Length 4.000 in. (102mm)
Air Filter Oulet Width 4.000 in. (102mm)
Air Filter Outlet Length 4.000 in. (102mm)
Air Filter Outlet Shape Round
Air Filter Outlet Width 4.000 in. (102mm)
Air Filter Washable Yes
Alternate Part Number 57-3056
ASIN B001DXNV6I
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
CARB EO Number D-269-38
Clamp Color Natural
Clamp Color/Finish Natural
Clamp Material Stainless Steel
Clamp Quantity 3
Clamp Style Regular
Clamps Included 3
Country of Origin (Primary) US
Coupler Color Black
Coupler Color/Finish Black
Couplers Included 1
Emission Code Legal US

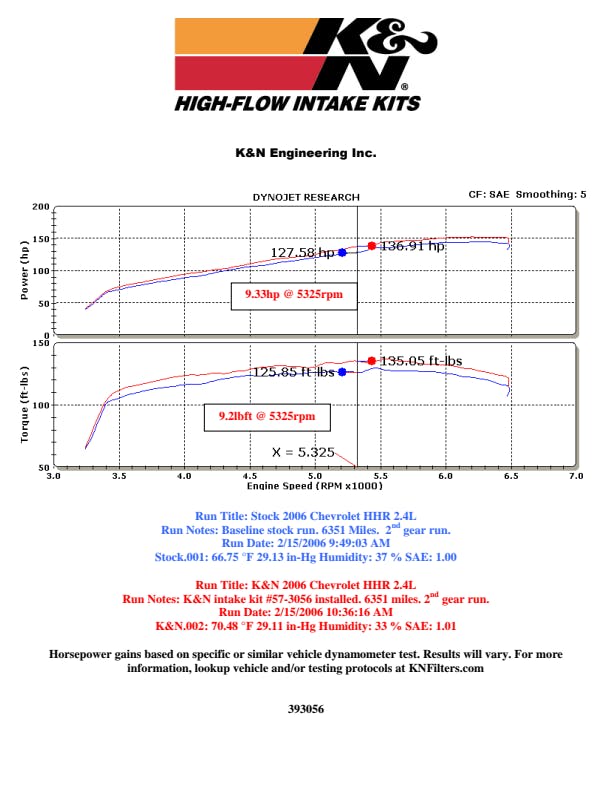

Estimated Horse Power Gain 9.33 HP @ 5325 RPM
Estimated Horsepower Gain 9.33 HP @ 5325 RPM
Estimated Torque Gain 9 lbft
Filter Color Red
Filter Material Cotton Gauze
Harmonized Tariff Code (Schedule B) 8421310000
Hazardous Material Code N
Horse Power Increase 9 HP
Intake Pipe Color Black
Intake Pipe Color / Finish Black
Intake Pipe Material High-Density Cross-Linked Polyethylene
Intake Pipe Ports All intake tube ports needed for the specified applications are included
Item Weight 7.800 lbs. (3.6 kg)
Life Cycle Status Code Available to Order
Mass Air Flow Sensor Adapter Included No
Mass Air Flow Sensor Included Mass Air Flow Sensor Adapter Included When Required
Mounting Hardware Included Yes
NAFTA Preference Criterion Code B
Oil Included Yes, Filter Is Pre-Oiled
Package Material Paperboard
Package Type Box
Product Box Height 12.5 in (318 mm), 12.500 in. (318mm)
Product Box Length 22.25 in (565 mm), 22.250 in. (565mm)
Product Box Width 14.25 in (362 mm), 14.250 in. (362 mm)
Product Style 57 Series FIPK
Replacement Filter RU-4550, RC-5149
RPM 5325
SDR Required Flag N
Street Legal Yes
Street Legal In All US States Yes, Legal for use in all 50 states.
TUV Approved (Europe) No, No
Type Gen II
Warranty No-Hassle Lifetime Limited
Weight 7.8 lb (3.6 kg)
GTIN 00024844232410
